Project Introduction: Mechanical Keyboard

15 Oct 2021 - Kalun

Background

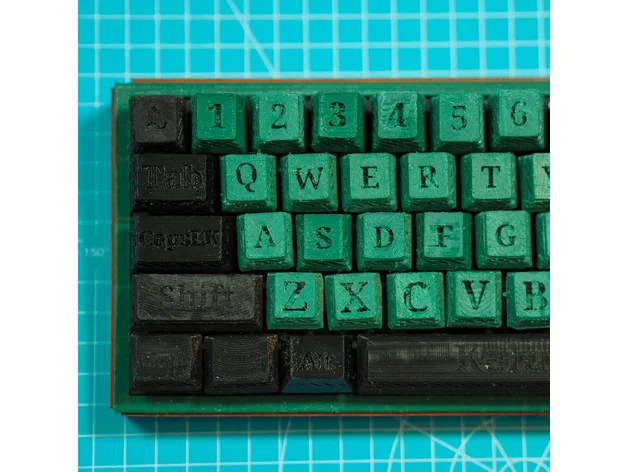

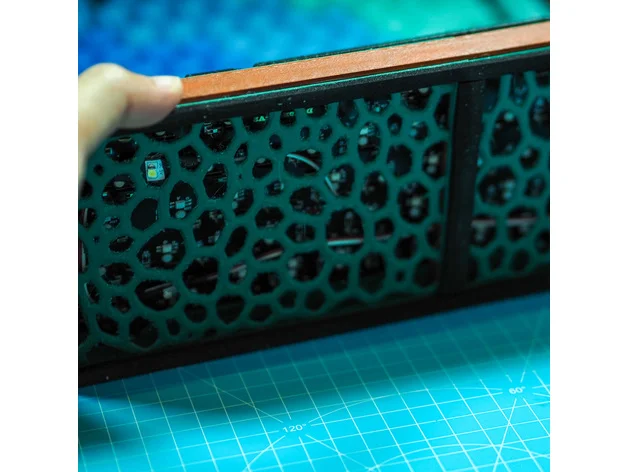

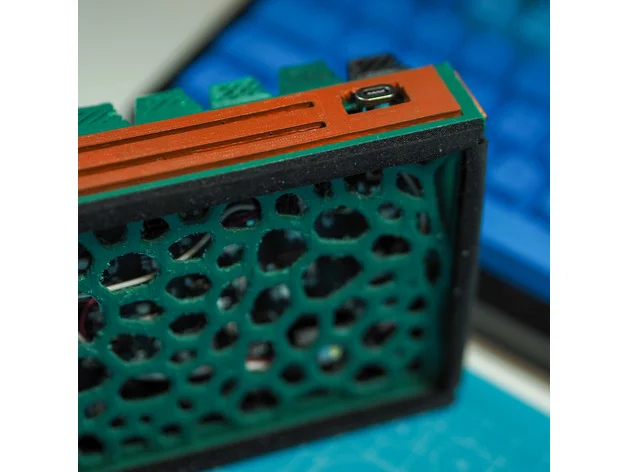

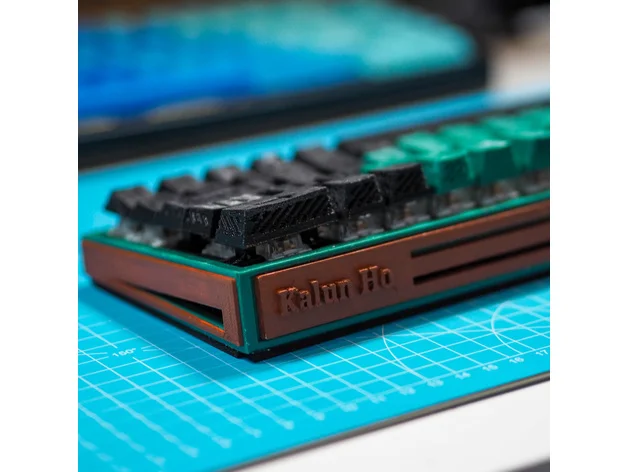

I designed this custom mechanical keyboard case including the keycaps. The PCB I used for this project is the DZ60rgb v3 hot-swappable, therefore no soldering is required. I personally like small and compact keyboards, that is why I choose a 60% layout. The PCB is configured via QMK, which allows you to pretty much re-programm all the keys. For this build, I have also added four small white LEDs on the back, which I soldered directly on the board (there is a 5v output pin somewhere on the board). These four LEDs are static and cannot be controlled via the software and light up as soon as you plug your USB-C cable in the keyboard. One 750g spool of regular PLA should be more than enough to print this keyboard.

Features

The main features of this keyboard are:

• Gasket Mount
• No screws are required
• fully 3D printable

Tutorial / Download

A full tutorial is available on my YouTube channel. The file is also available on Thingiverse.

Impressions
